By MAJOR Team • Updated January 2025 • • Mining & Aggregate

To improve vibrating screen efficiency: eliminate blinding and pegging with high-vibration screen media, optimize vibration parameters (stroke 8–12mm, speed 800–1,000 RPM, deck angle 18–22°), match opening size to sieve test results, and monitor performance in real time. These methods can increase throughput by up to 40% and reduce cost per ton.

Every responsible plant manager knows the feeling: the screen is running, the belt is moving — but output is short of target and nobody can explain why. The cause is almost always a loss of screen efficiency, and it rarely triggers an alarm. It just quietly drains your operation, ton by ton.

There is no universal solution to every screening challenge. Blinding, pegging, and maintenance neglect affect every operation differently. But they all respond to the same diagnostic approach — and that is exactly what this guide covers.

Below, we break down the three root causes of poor vibrating screen efficiency and the seven most impactful methods to address them, drawn from thousands of on-site assessments across mining and aggregate operations worldwide.

What Is Vibrating Screen Efficiency?

Vibrating screen efficiency is the ratio of undersize material that actually passes through the screen openings to the total undersize material present in the feed. It is expressed as a percentage:

Efficiency (%) = (Undersize in product ÷ Undersize in feed) × 100

In practice: if your feed contains 100 tons of material smaller than your screen opening, and your screen delivers 85 tons of that material to the product belt, your efficiency is 85%.

Industry benchmarks:

90%+ — Good. The screen is performing as designed.

80–90% — Acceptable. Monitor closely and investigate declining trends.

<80% — Critical. Immediate investigation required. Significant throughput and spec losses are occurring.

The challenge is that most operations do not measure screen efficiency continuously. They notice the symptom — lower output, off-spec product, re-screening — long after the cause has been developing. That is why a structured improvement approach matters.

Why Screen Efficiency Matters More Than You Think

A 10% drop in screen efficiency — say from 92% to 82% — is not a minor inconvenience. For a plant processing 500 tons per hour of material, that is 50 additional tons per hour that either:

Carries over to the reject pile as out-of-spec product,

Enters the downstream product as oversize contamination (spec failure), or

Gets sent back through the crusher for re-processing (energy cost).

At 2,000 operating hours per year, that 50-ton-per-hour gap represents 100,000 tons per year of lost or degraded production. The financial impact depends on your product value, but it is never insignificant.

Beyond throughput, poor efficiency creates cascading downstream problems: crusher overload from re-circulating material, customer complaints from off-spec product, and accelerated equipment wear from material that does not belong where it ends up.

The 3 Biggest Causes of Poor Vibrating Screen Efficiency

In our experience across thousands of aggregate and mining operations worldwide, poor screen efficiency traces back to three root causes in the vast majority of cases. Identifying which one — or which combination — is affecting your operation is the starting point for any improvement program.

1. Blinding: When Your Screen Openings Seal Shut

Blinding occurs when fine or wet particles form a paste-like layer over screen openings, physically sealing them from below. Material bonds to the wire under surface tension — once one particle adheres, the next bonds faster, and the blockage compounds.

A screen experiencing moderate blinding can lose 60% of its effective open area within a single hour of operation in wet conditions, without triggering any alarm or visually alerting the operator. The machine is running. The screen is turning. The output is falling.

Blinding is most severe in operations processing:

Wet or damp aggregate (limestone, sand, gravel)

Clay-contaminated feed material

Fine coal or mineral fines on bottom decks

Material with high moisture content during weather events

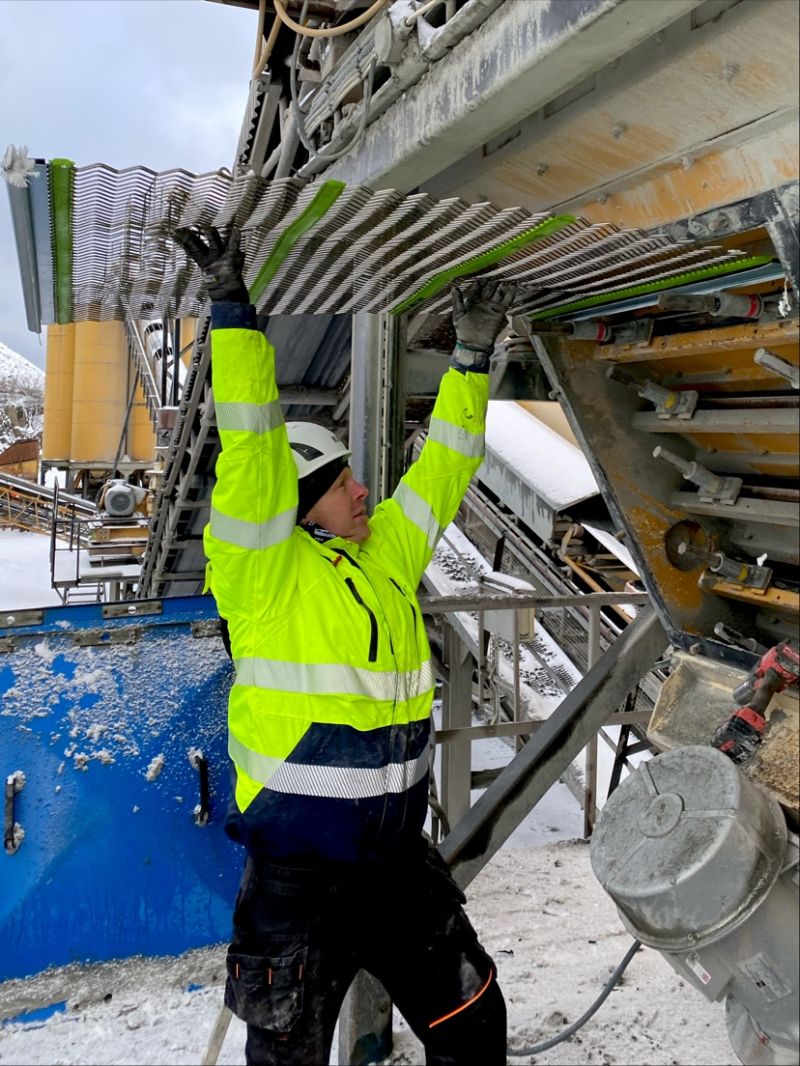

Traditional approaches — water sprays, anti-blinding balls, manual cleaning between shifts — treat the symptom. They do not address the mechanism: the wire surface provides a stable contact point for fine material to bond to. High-vibration wire screen media addresses the mechanism directly, by moving the wire surface faster than surface tension can bind the particle.

2. Pegging: The Near-Size Problem

Pegging happens when particles just slightly larger than the screen opening diameter become physically wedged into the mesh. With rigid screen media, the wire cannot flex to eject the particle — it stays locked in the opening, permanently reducing effective open area.

The insidious quality of pegging is its silence. Unlike blinding — which sometimes produces a visible buildup on the deck surface — pegging fills openings invisibly, from the wire itself. Throughput decreases steadily. Operators blame the material, the machine, or the season. The screen media is rarely questioned because it looks intact.

Near-size fraction — material within ±25% of the opening size — is the pegging risk population. When this fraction exceeds 30% of your total feed, pegging risk is elevated regardless of media type.

Angular and cubic aggregate shapes (granite, basalt, quartzite) are significantly more prone to pegging than rounded or fluvial material, because angular particles can orient themselves to enter an opening and then resist ejection by point-locking against the wire.

3. Incorrect Vibration Parameters and Media Selection

The third cause is the most controllable — and often the most neglected. Vibration parameters set correctly for a material five years ago may be significantly wrong for the material processed today.

Common parameter errors include:

Insufficient stroke amplitude for a heavy material load — the bed does not stratify, efficiency collapses

Wrong deck angle — too steep speeds material across without sufficient separation time; too flat creates an overly deep bed

Incorrect speed (RPM) for the particle size distribution — fine material requires higher frequency; coarse material benefits from longer stroke

Wrong opening size — the most common error seen on-site after a quarry face change or crusher setting adjustment, where the screen media is not updated to match the new PSD

These errors are identifiable through a structured on-site assessment. A vibration measurement across all four deck corners, combined with a feed material analysis, reveals the gap between current parameters and the application-optimal configuration.
